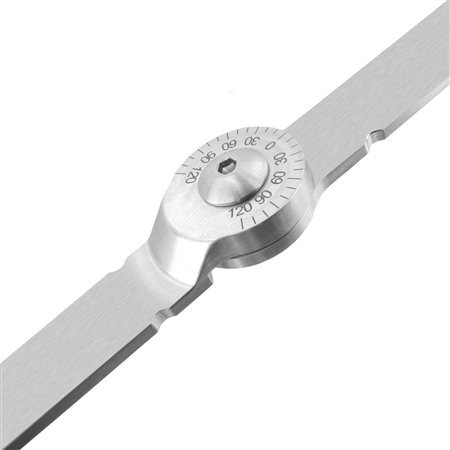

MultiStatic Joint
The MultiStatic Joint enables fast, efficient, and effective static treatment of contractures due primarily to orthopedic injuries or diseases, utilizing HLBS (High Load Brief Stretch) principles. The angle of the joint is set by an eccentric axis. This continuously adjustable static extension or flexion joint is used in orthoses for both children and adults.
Recommended Range Of Application
Improvement/rehabilitation of joint mobility and resting posture.
Other
Features: Easy angle adjustment due to optimally positioned joint axis, flexion or extension, continuous angle adjustment of +120° to -120°, integrated bars, used on both left and right, stainless steel
Length
| Item No. | Length | Diameter | Width | Height | Product description | Thickness | Weight |
|---|---|---|---|---|---|---|---|
| 696890000 | 100 mm | 11 mm | 9 mm | 6.5 mm | MultiStatic 9mm Static Joint | 2 mm | 14 grams |
| 696900000 | 400 mm | 19 mm | 12 mm | 8.5 mm | MultiStatic 12mm Static Joint | 2 mm | 83 grams |
| 696910000 | 400 mm | 24 mm | 16 mm | 9.5 mm | MultiStatic 16mm Static Joint | 2 mm | 122 grams |
| 696920000 | 400 mm | 30 mm | 19 mm | 10 mm | MultiStatic 19mm Static Joint | 2 mm | 153 grams |
-
Contracture Management Catalog - A710 (2.91 MB)
Other documents
